Rubber Bushing

MAZDA / 121 I (DA) / Rubber Bushing / FRONT LOWER ARM OUTER / CBH03008

Technical Specification Matrix

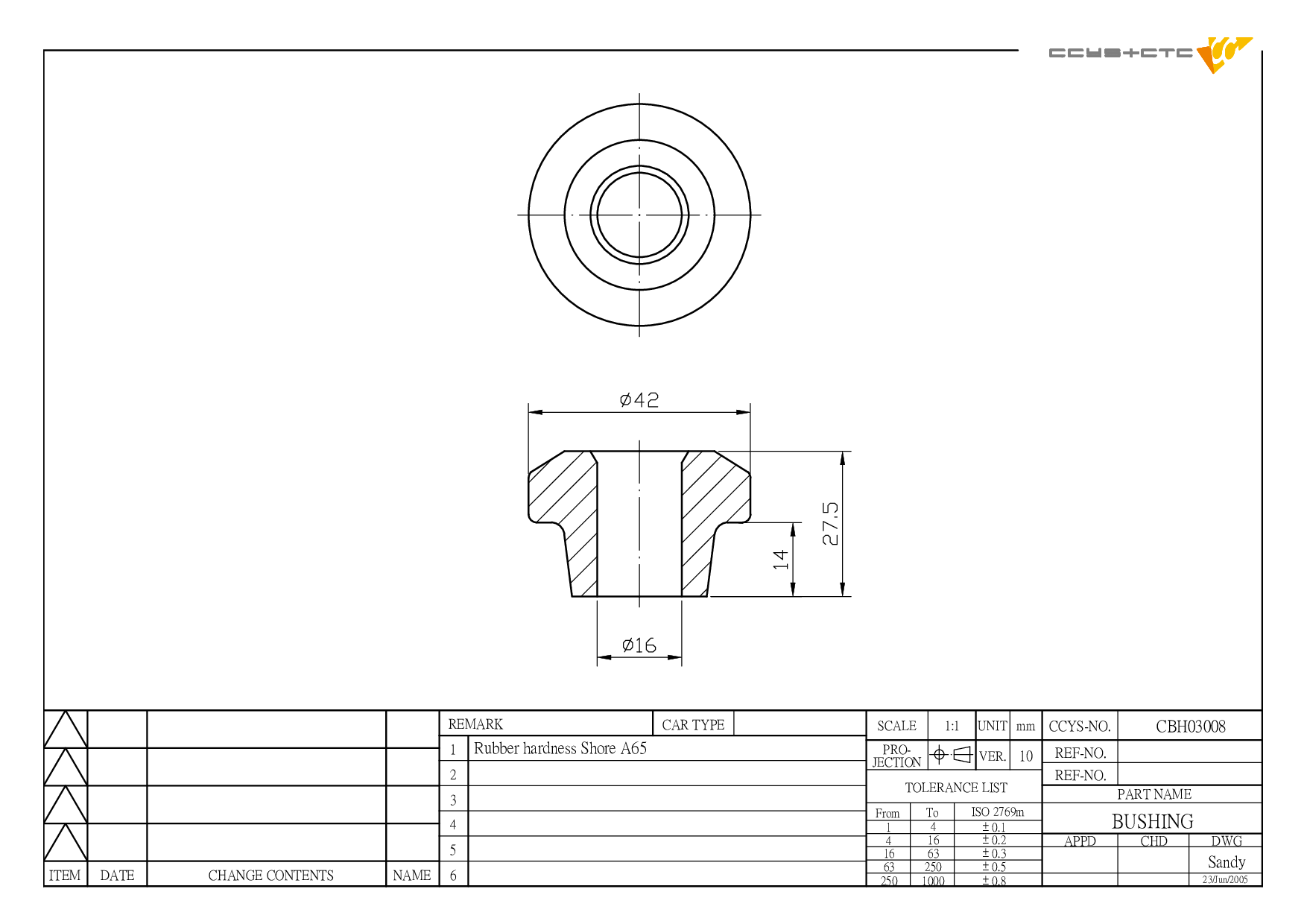

CBH03008 是 MAZDA 專用的橡膠襯套 (FRONT LOWER ARM OUTER)。本產品為 OEM 規格替代零件，適配原廠料號 D031-34-310A,D031-34-320A,D061-34-300,D061-34-350。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM OUTER
OE 替代料號 (Original Equipment Numbers)	D031-34-310A D031-34-320A D061-34-300 D061-34-350
Length	28 mm
Width	42 mm
Height	42 mm
Net Weight	0.0 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03008	FRONT LOWER ARM OUTER	D031-34-310A D031-34-320A D061-34-300 D061-34-350
CBH03040	FRONT LOWER ARM INNER	D031-34-310A D031-34-320A D061-34-300 D061-34-350

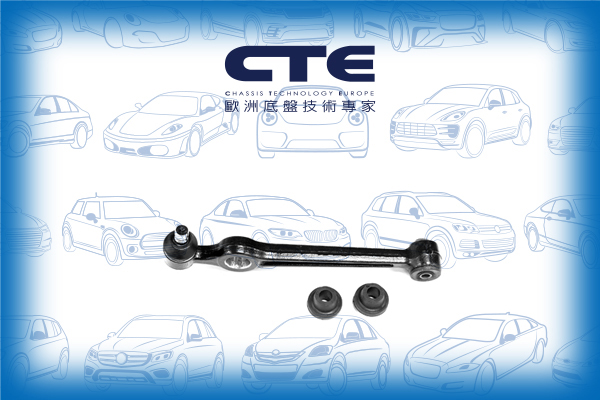

CS-335L	FRONT LOWER LH	D061-34-350

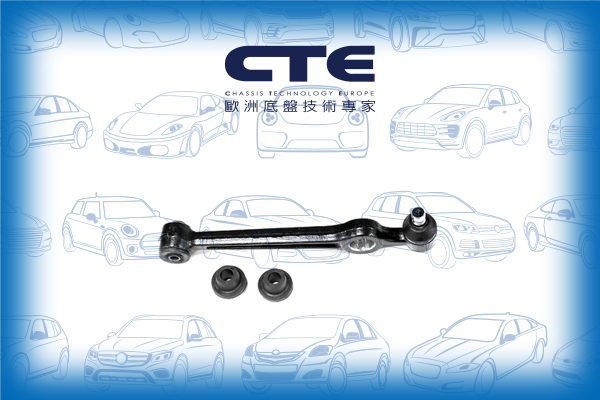

CS-335R	FRONT LOWER RH	D061-34-300
CTE03007	FRONT AXLE LH/ RH (C= M12X1.25)	8AB2-32-280 B455-32-280

Model (Year)
121 I (DA) 121 II (DB) \| REVUE
