Rubber Bushing

MAZDA / 626 III (GD) | 626 / EUNOS 300 | TELSTAR / 626 / EUNOS 300 / Rubber Bushing / FRONT LOWER ARM INNER / CBH03007

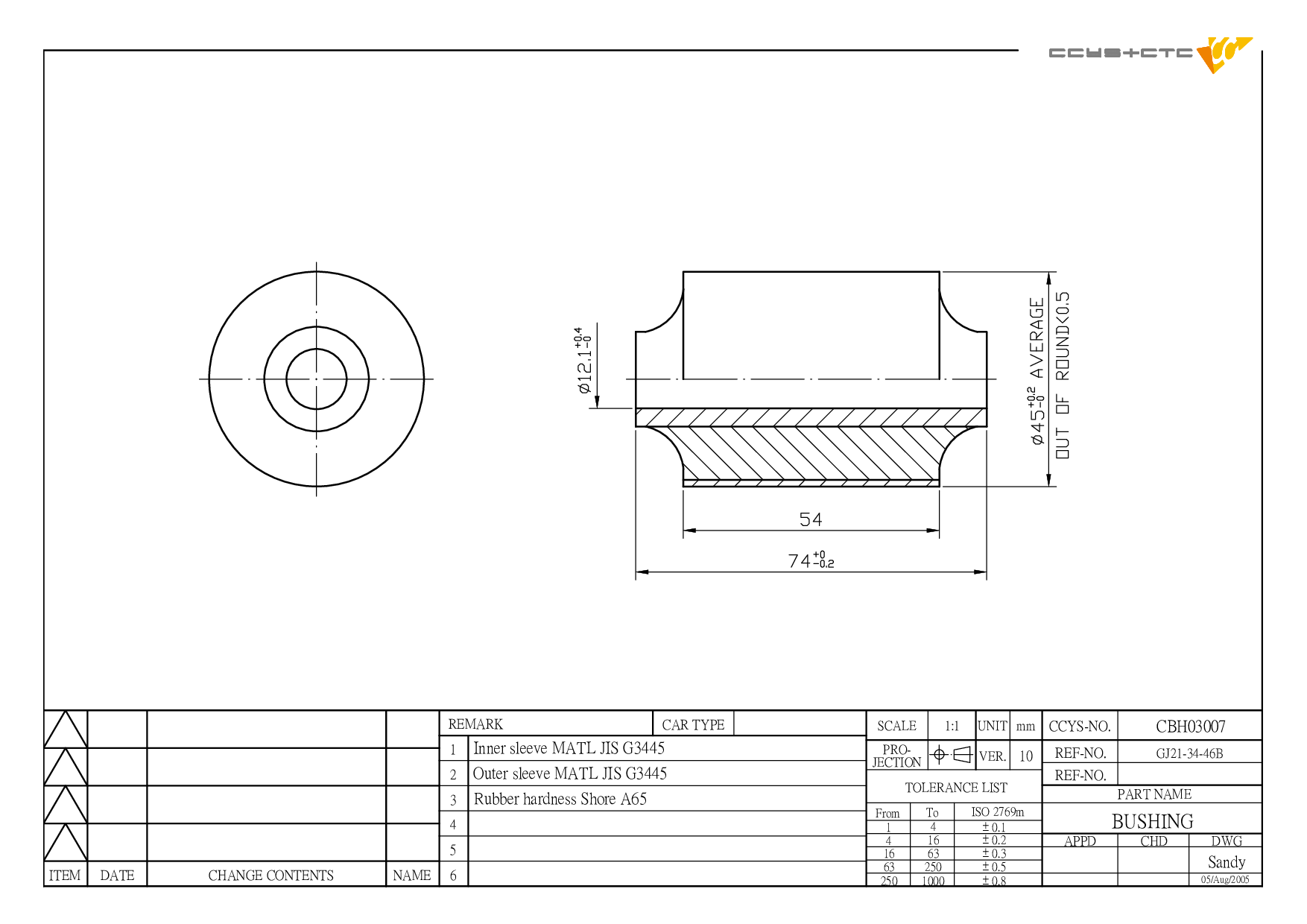

Technical Specification Matrix

CBH03007 是 MAZDA 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 GJ21-34-46B。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	GJ21-34-46B
Length	74 mm
Width	45 mm
Height	45 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03007	FRONT LOWER ARM INNER	GJ21-34-46B
CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320
CRE03006	D= M14X1.5 , C= M16X1.0	G030-32-250 G030-32-250A G030-32-250C
CRE03018	D= M14X1.5 , C= M18X1.5	B455-32-25X B456-32-25X GJ21-32-240 GJ22-32-240
CS-306L	FRONT LOWER LH	GF22-34-350A GJ22-34-350A GJ22-34-350B GJ83-34-350B GN98-34-350A KA39-34-350A
CS-306R	FRONT LOWER RH	GF22-34-300A GJ22-34-300A GJ22-34-300B GJ83-34-300B GN98-34-300A KA39-34-300A
CSL03003	FRONT	G030-34-157 G030-34-157A
CTE03004	FRONT AXLE LH/ RH (C= M14X1.5)	0H001-32280 0K620-32240A 1363-32510A 1391-99-322 8AH1-32-280 9922-13-020 9992-41-201 H001-99-324 H260-32-280
CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ
