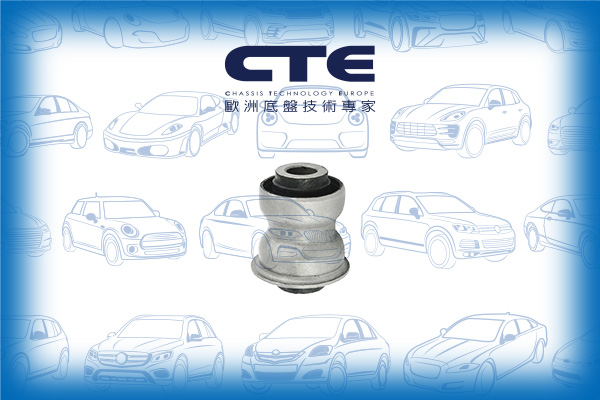

Rubber Bushing

TOYOTA / CAMRY (_V7_, _VA7_, _VH7_) / Rubber Bushing / REAR LOWER ARM INNER / CBH02087

Name: CBH02087
Brand: CTE
SKU: CBH02087
Price: 602.00 TWD
Availability: InStock

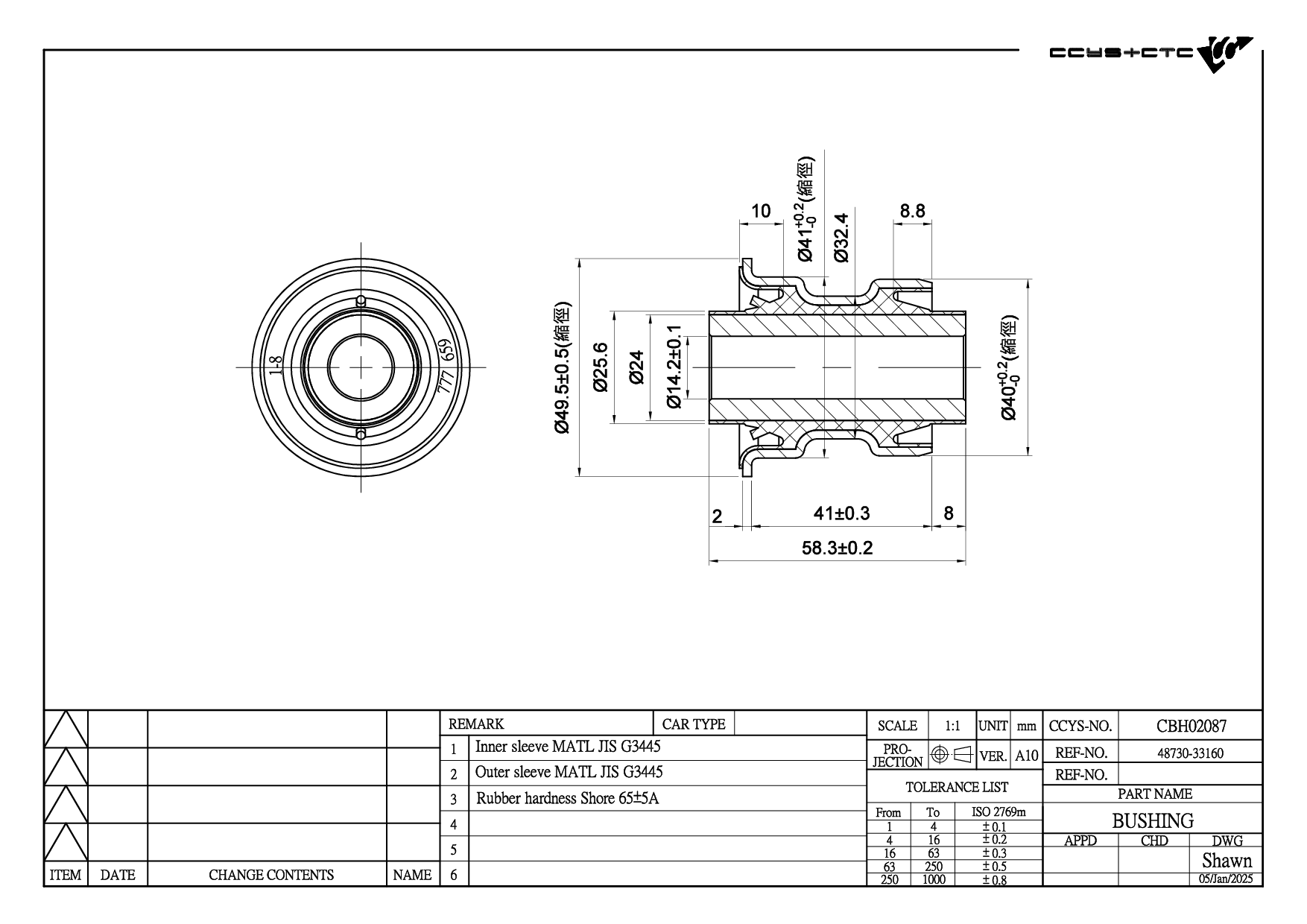

Technical Specification Matrix

CBH02087 是 TOYOTA 專用的橡膠襯套 (REAR LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 48730-02060,48730-02080,48730-02090,48730-06120,48730-06130,48730-06150,48730-0R050,48730-33160,48730-42060,48730-47010,48730-F4010,48730-F4040。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	REAR LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	48730-02060 48730-02080 48730-02090 48730-06120 48730-06130 48730-06150 48730-0R050 48730-33160 48730-42060 48730-47010 48730-F4010 48730-F4040
Length	50 mm
Width	50 mm
Height	58 mm
Net Weight	0.2 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH02030	FRONT LOWER ARM INNER	48068-06200 48068-08021 48068-33090 48069-06200 48069-08021 48069-33090 48654-28060 48654-33050 48654-33060 48654-48020
CBH02082	REAR AXLE ARM	48770-06010 48770-06020 48770-33020 48770-42050 48770-F4010 48790-06010 48790-06020 48790-33020 48790-42030 48790-F4010
CBH02083	FRONT LOWER ARM REAR	48068-06200 48068-06230 48068-08050 48068-0E070 48068-0R050 48068-0R060 48068-33090 48068-42070 48069-06200 48069-06230 48069-08050 48069-0E070 48069-0R050 48069-0R060 48069-33090 48069-42070 48655-0E040
CBH02087	REAR LOWER ARM INNER	48730-02060 48730-02080 48730-02090 48730-06120 48730-06130 48730-06150 48730-0R050 48730-33160 48730-42060 48730-47010 48730-F4010 48730-F4040
CBH02088	REAR LOWER ARM INNER	2914500-PT02 48710-02090 48710-06160 48710-06170 48710-33150 48710-33160 48710-47010 C281F260203-1000
CBJ02016A	FRONT LOWER LH/RH	43330-02111 43330-05040 43330-09630 43330-09631 43330-09720 43330-09770 43330-09A30 43330-09A40 43330-19245 43330-19255 43330-19275 43330-49095 43330-49195 43330-49215
CS-279L	REAR AXLE LH	48790-06010 48790-06020 48790-33020 48790-42030 48790-F4010
CS-279R	REAR AXLE RH	48770-06010 48770-06020 48770-33020 48770-42050 48770-F4010
CS-280	REAR LOWER LH/RH	48730-33160
CS-281	REAR LOWER LH/RH	2914500-PT02 48710-02090 48710-06160 48710-06170 48710-33150 48710-33160 48710-47010 C281F260203-1000
CS-282L	FRONT LOWER LH	48069-06200 48069-33090
CS-282R	FRONT LOWER RH	48068-06200 48068-33090
CS02141L	FRONT LOWER LH	48069-06230
CS02141R	FRONT LOWER RH	48068-06230
CSL02080	FRONT AXLE LH/RH	48820-06040 48820-0E010 48820-28050 48820-28060 48820-33030 48820-33090
CSL02101	FRONT AXLE LH/ RH	48820-08020 K80249
CSL02125	REAR AXLE LH/ RH	48830-0R030 48830-0R040
CSL02136	REAR AXLE LH/ RH	48830-06090 48830-06100 48830-06120 48830-16020 48830-47010 48830-F4020 T4883-04701
