Technical Specification Matrix

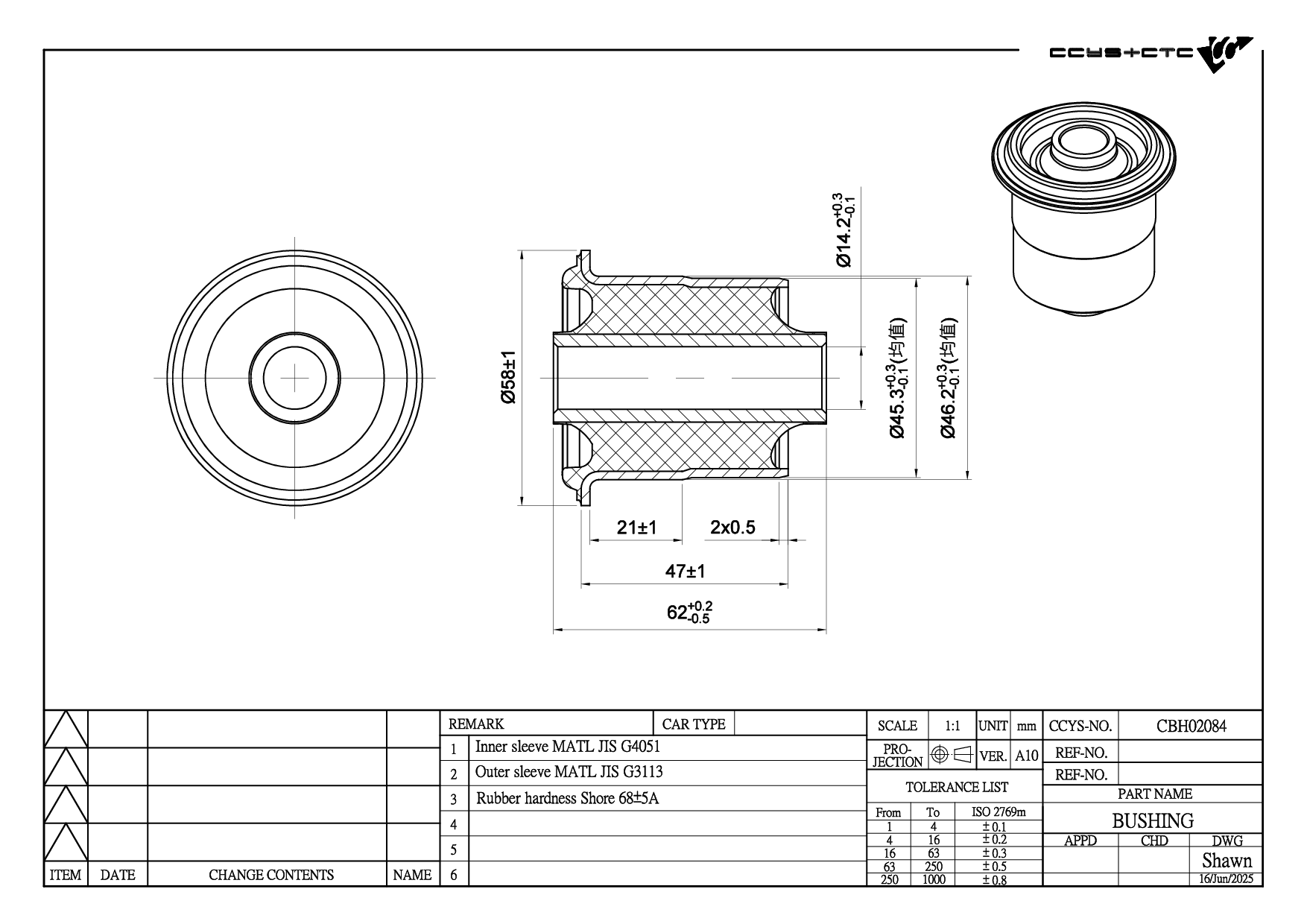

CBH02084 是 TOYOTA 專用的 橡膠襯套 (FRONT UPPER ARM INNER)。
本產品為 OEM 規格替代零件，適配原廠料號 48610-04020,48610-04021,48610-0K040,48610-0K050,48630-04020,48630-04021,48630-0K040,48630-0K050。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Rubber Bushing |
| Position | FRONT UPPER ARM INNER |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 59 mm |
| Width | 59 mm |
| Height | 62 mm |
| Net Weight | 0.2 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH02084 | FRONT UPPER ARM INNER |
|
|
 |
CBH02103 | FRONT LOWER ARM INNER |
|
|
 |
CBH02104 | FRONT LOWER ARM INNER |
|
|
 |
CBJ02024 | FRONT LOWER LH/RH |
|
|
|
CBJ02028 | FRONT UPPER LH/ RH |
|
|
 |
CRE02098 | FRONT AXLE LH/ RH |
|
|
 |
CS-269L | FRONT UPPER LH |
|
|
 |
CS-269R | FRONT UPPER RH |
|
|
 |
CS-277L | FRONT LOWER LH |
|
|
 |
CS-277R | FRONT LOWER RH |
|
|
 |
CSL02070L | FRONT LH (A= 140MM) |
|
|
 |
CSL02070R | FRONT RH (A= 140MM) |
|
|
 |
CSL02091 | REAR AXLE LH/ RH |
|
| Model (Year) |
|---|
|
FORTUNER (_N15_, _N16_) FORTUNER (_N5_, _N6_) HILUX VI Pickup (_N1_) | TACOMA HILUX VII Pickup (_N1_, _N2_, _N3_) | HILUX VIGO HILUX VII Platform/Chassis (_N1_, _N2_) HILUX VIII Pickup (_N1_) HILUX VIII Platform/Chassis (_N1_) SW4 (_N15_, _N16_) TACOMA Pickup (_N2_) |
