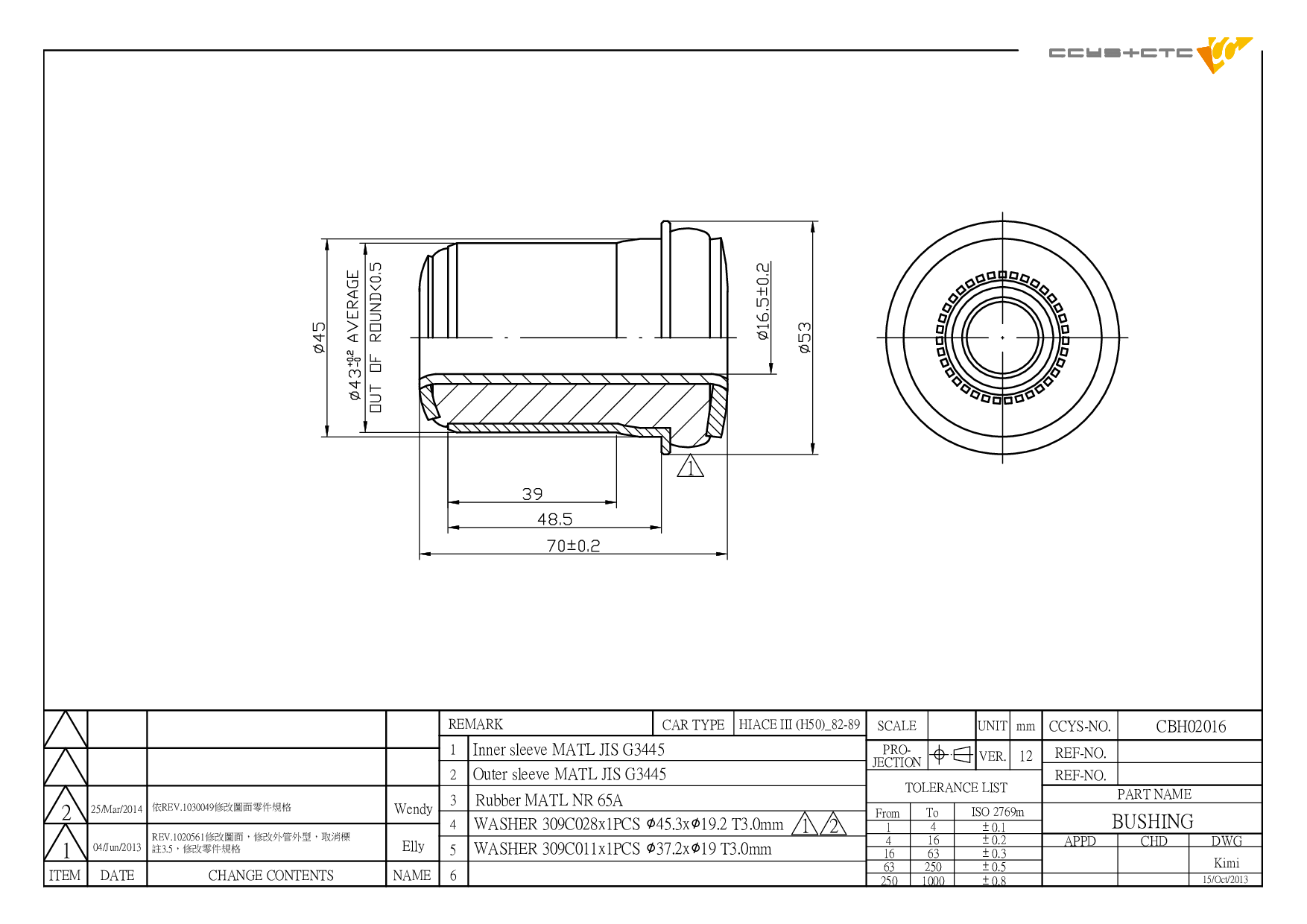

Rubber Bushing

TOYOTA / GRANVIA (_H2_, _H1_) / Rubber Bushing / FRONT LOWER ARM INNER / CBH02016

Rubber Bushing/TOYOTA/HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_)/HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_)/HIACE IV Bus (__H1_, __H2_)/HIACE IV Van (_H1_)/HIACE IV Van (__H1_, __H2_)

Technical Specification Matrix

CBH02016 是 TOYOTA 專用的 橡膠襯套 (FRONT LOWER ARM INNER)。 本產品為 OEM 規格替代零件，適配原廠料號 48061-26010,48061-26030,48061-26031,48061-26050,48061-35010,48061-35011。
更多相關商品
PARAMETER METRIC / VALUE
Designation Rubber Bushing
Position FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)
  • 48061-26010
  • 48061-26030
  • 48061-26031
  • 48061-26050
  • 48061-35010
  • 48061-35011
Length 53 mm
Width 53 mm
Height 70 mm
Net Weight 0.4 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No. DESIGNATION POSITION OE No.
CBH02016 FRONT LOWER ARM INNER
  • 48061-26010
  • 48061-26030
  • 48061-26031
  • 48061-26050
  • 48061-35010
  • 48061-35011
CBH02055 REAR AXLE LH/RH
  • 52380-26080
  • 52380-26081
  • 52380-26082
CBH02114 FRONT UPPER ARM
  • 48066-29215
  • 48066-29225
  • 48067-29215
  • 48067-29225
  • 48635-26040
CBH02115 FRONT UPPER ARM
  • 48066-29215
  • 48066-29225
  • 48066-35070
  • 48066-35100
  • 48066-35110
  • 48067-29215
  • 48067-29225
  • 48067-35030
  • 48067-35040
  • 48067-35060
  • 48632-26050
  • 48632-26051
CRE02023 D= M17X1.5 , C= M14X1.5
  • 45503-19116
  • 45503-29255
CRE02024 D= M17X1.5 , C= M14X1.5
  • 45503-29265
CRE02153 FRONT AXLE LH/ RH
  • 45503-02200
CRE02154 FRONT AXLE LH/ RH
  • 45503-29575
  • 45503-29836
CRE02169 FRONT AXLE LH/ RH
  • 45503-29565
CS-239L FRONT LOWER LH
  • 48069-26070
  • 48069-26071
  • 48069-26072
  • 48069-26130
  • 48069-26131
  • 48069-26132
CS-239R FRONT LOWER RH
  • 48068-26070
  • 48068-26071
  • 48068-26072
  • 48068-26130
  • 48068-26131
  • 48068-26132
CSL02038 FRONT AXLE LH/RH
  • 48819-26050
  • 90101-10140
  • 90179-10029
  • 90440-14003
  • 90948-01002
  • 90948-02004
  • 90948-02005
  • 90948-02190
  • 94184-61000
  • 94184-61001
CSL02040L FRONT LH (A= 74MM)
  • 48810-26030
CSL02040LA FRONT LH (A= 74MM)
  • 48810-26030
CSL02040R FRONT RH (A= 74MM)
  • 48820-26030
CSL02040RA FRONT RH (A= 74MM)
  • 48820-26030
CSL02071 FRONT
  • 48820-17020
  • 48820-17030
  • 48820-17040
CSL02095L FRONT AXLE LH
  • 48810-26020
CSL02095R FRONT AXLE RH
  • 48820-26020
Model (Year)
GRANVIA (_H2_, _H1_)
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_)
HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_)
HIACE IV Bus (__H1_, __H2_)
HIACE IV Van (_H1_)
HIACE IV Van (__H1_, __H2_)
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) | TACOMA | PICKUP
HILUX VI Pickup (_N1_) | TACOMA
HILUX VI Platform/Chassis (_N1_)
