Rubber Bushing

HONDA / CIVIC VII Coupe (EM2) / Rubber Bushing / FRONT LOWER ARM REAR / CBH01033

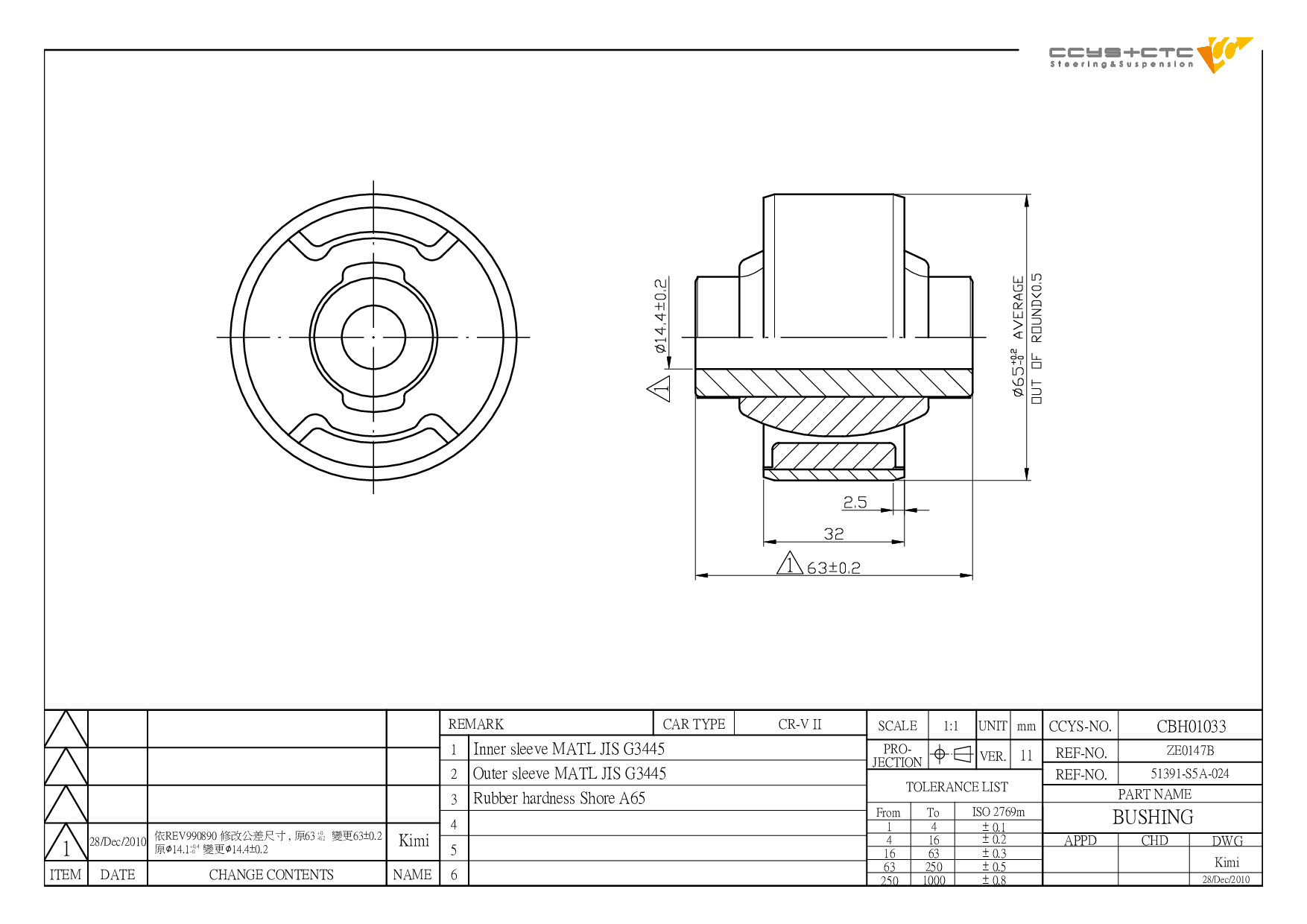

Technical Specification Matrix

CBH01033 是 HONDA 專用的橡膠襯套 (FRONT LOWER ARM REAR)。本產品為 OEM 規格替代零件，適配原廠料號 51391-S5A-004,51391-S5A-014,51391-S5A-024。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM REAR
OE 替代料號 (Original Equipment Numbers)	51391-S5A-004 51391-S5A-014 51391-S5A-024
Length	63 mm
Width	65 mm
Height	65 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH01033	FRONT LOWER ARM REAR	51391-S5A-004 51391-S5A-014 51391-S5A-024
CBH01034	FRONT LOWER ARM INNER	51392-S5A-004 51392-S5A-701 51392-S5A-801 51392-S5A-851 52370-S5A-030
CRE01029	FRONT AXLE LH/ RH	53521-S5A-003 53521-S6M-003 53521-S6M-305 53521-S7A-003
CS-147L	FRONT LOWER LH	51360-S5A-020 51360-S5A-030 51360-S5A-306 51360-S5A-800 51360-S5A-850 51360-S5A-A02 51360-S5A-A03 51360-S5A-A10 51360-S5A-E50 51360-S6A-000 51360-S6A-A00 51360-S6D-G00
CS-147R	FRONT LOWER RH	51350-S5A-020 51350-S5A-030 51350-S5A-306 51350-S5A-800 51350-S5A-850 51350-S5A-A02 51350-S5A-A03 51350-S5A-A10 51350-S5A-E50 51350-S6A-000 51350-S6A-A00 51350-S6D-G00
CSL01014L	FRONT LH (A= 55MM)	51321-S5A-003 51321-S5A-003A 51321-S5A-305
CSL01014R	FRONT RH (A= 55MM)	51320-S5A-003 51320-S5A-003A 51320-S5A-305
CSL01029L	REAR LH (A= 72MM)	52321-S5A-013 52321-S5T-J01
CSL01029R	REAR RH (A= 72MM)	52320-S5A-013 52320-S5T-J01 K90452
CTE01009	FRONT AXLE LH/ RH (C= M14X1.5)	53541-S5A-003 53541-S7A-003 53542-SCV-A01
